Powerful, rugged
and a great performer in an affordable package

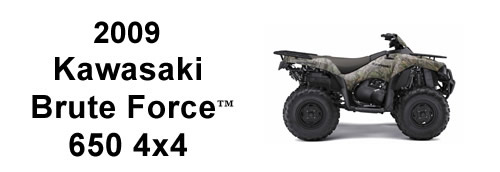

The Brute Force 650 4x4
features a powerful Kawasaki V-twin engine coupled
to a state of the art four-wheel-drive system in a
full-sized ATV chassis. With modern styling, an automatic
continuously variable transmission (CVT), shaft drive
and limited slip differentials, the 650 4x4 offers
unbeatable value without skimping on features.
The Brute Force 650 4x4 is
powered by Kawasakis highly acclaimed liquid-cooled
633cc, 90-degree V-twin engine featuring single overhead
cams and four valves per cylinder. It is fed by dual
32mm Keihin carburetors drawing fresh air from a snorkel
intake located high in the frame near the steering
head. Together, these powerplant features provide
the rider with industry-leading torque and smooth-running
operation unmatched by the competition.
Power is then transferred to
Kawasakis much-acclaimed fully automatic CVT
transmission. With high or low forward gears, plus
neutral and reverse, this proven transmission functions
seamlessly, providing excellent control for both low-
and high-speed work or recreational riding. Plus,
the Brute Force 650 4x4 can also be started in any
gear, provided the brakes are applied.
Complementing the CVT is a
switch on the right handle bar that gives the rider
a choice of either two-wheel or four-wheel drive operation,
and power is delivered to the wheels by dependable,
low-maintenance shaft drive. In normal four-wheel
drive mode, the front wheels provide extra traction
for adverse terrain, while the limited-slip differential
allows the rider to make tight turns and reduces steering
effort.
As expected, the Brute Force
650 4x4 includes Kawasakis Variable Front Differential
Control, a favorite feature often praised by editors
of the leading ATV magazines. By pulling a small lever
on the left handlebar, the rider can deliver equal
amounts of power to both front wheels, a definite
advantage for riders encountering deep mud and slippery
uphill trails or when traversing over large objects
such as logs or rocks.
The Brute Force 650 4x4 braking
system also benefits from leading-edge Kawasaki design.
Dual front disc brakes with dual-piston calipers are
matched to Kawasakis sealed, oil-bathed, multi-disc
rear brake system. As an integrated part of the shaft
drive, the rear braking system is sealed in the aluminum
swingarm where it operates in an oil bath. This protects
the brake pads from mud, dust and debris, and is virtually
maintenance-free.
Working in conjunction with
the high-performance brakes is the Kawasaki Engine
Brake Control system, which electronically monitors
ground speed and uses the engines compression
to help slow the ATV.
Kawasakis 4x4 ATVs have
a well-deserved reputation for providing smooth, comfortable
rides and the Brute Force 650 4x4 carries on this
tradition. MacPherson strut front suspension with
6.7 inches of travel grace the front end, while the
aluminum swingarm rear suspension features a fully
adjustable spring, piggy-back reservoir and 7.2 inches
of travel.
Additional comfort is provided
by a large saddle and adjustable footpegs mounted
atop full-size floorboards. To help reduce unsprung
weight and further enhance the smooth ride, the Brute
Force rides on aluminum wheels.
The Brute Force 650 4x4 is
wrapped in tough-looking bodywork styled after its
bigger sibling, the Brute Force 750 4x4i. With
its modern, aggressively angled lines complemented
by cat-eye headlights, the bodywork is made from Thermo-Plastic
Olefin, which has an ultra-high gloss appearance and
is scratch-resistant.
Other features include front
and rear steel racks that can carry a total of 264
pounds of cargo, and a tow hitch so it can tow up
to 1,250 pounds. Kawasaki engineers also provided
space inside the front guard so it can accommodate
a Warn 3000 winch or Super Winch 3000.
The Brute Force 650 4x4 comes
with fully digital instrumentation, including speedometer,
odometer, dual resettable trip meters, clock, hour
meter, fuel gauge and 2x4/4x4 indicators. There is
also a DC power outlet.
|
